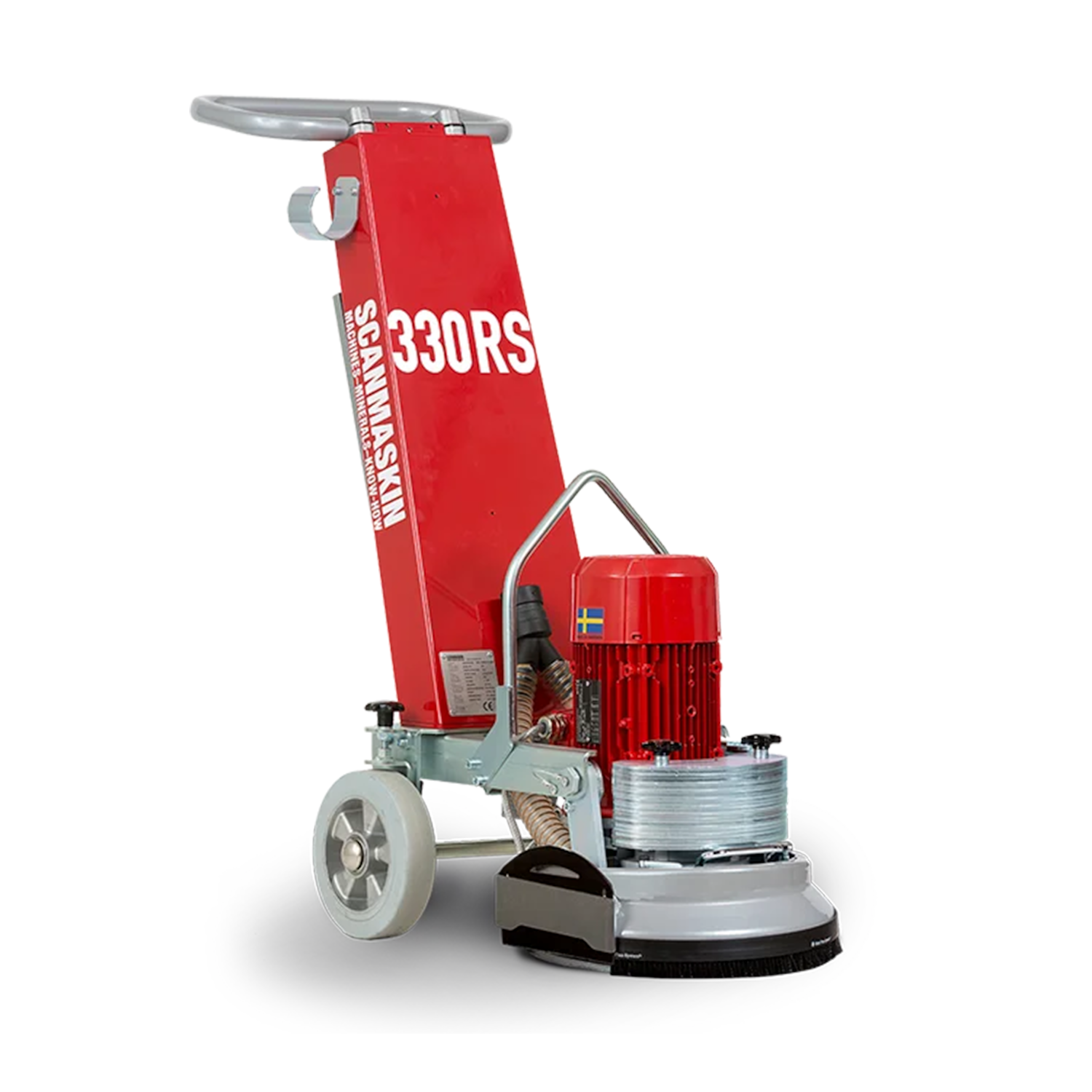

Scanmaskin 330 RS

A powerful and easy-to-use edger

The Scanmaskin 330 RS is a powerful and easy-to-use floor grinding machine and is one of the most versatile machines on the market. Scanmaskin 330 RS is equipped with adjustable speed. The 330 mm/13-inch single grinding disc is effective for grinding smaller areas, edging long stretches of the floor, lite coating removal, and surface prep. A simple and quick adjustment allows the operator to change the configuration of the Scanmaskin 330 RS from a small grinder into an edger, with the entire process taking less than one minute.

This product can only be shipped by LTL Freight Shipping Only. Does not qualify for free shipping. Please call for a shipping estimate. (800) 927-2490.

Description

Scanmaskin 330 RS

A powerful and easy-to-use edger

The Scanmaskin 330 RS is a powerful and easy-to-use floor grinding machine and is one of the most versatile machines on the market. Scanmaskin 330 RS is equipped with adjustable speed. The 330 mm/13-inch single grinding disc is effective for grinding smaller areas, edging long stretches of the floor, lite coating removal, and surface prep. A simple and quick adjustment allows the operator to change the configuration of the Scanmaskin 330 RS from a small grinder into an edger, with the entire process taking less than one minute.

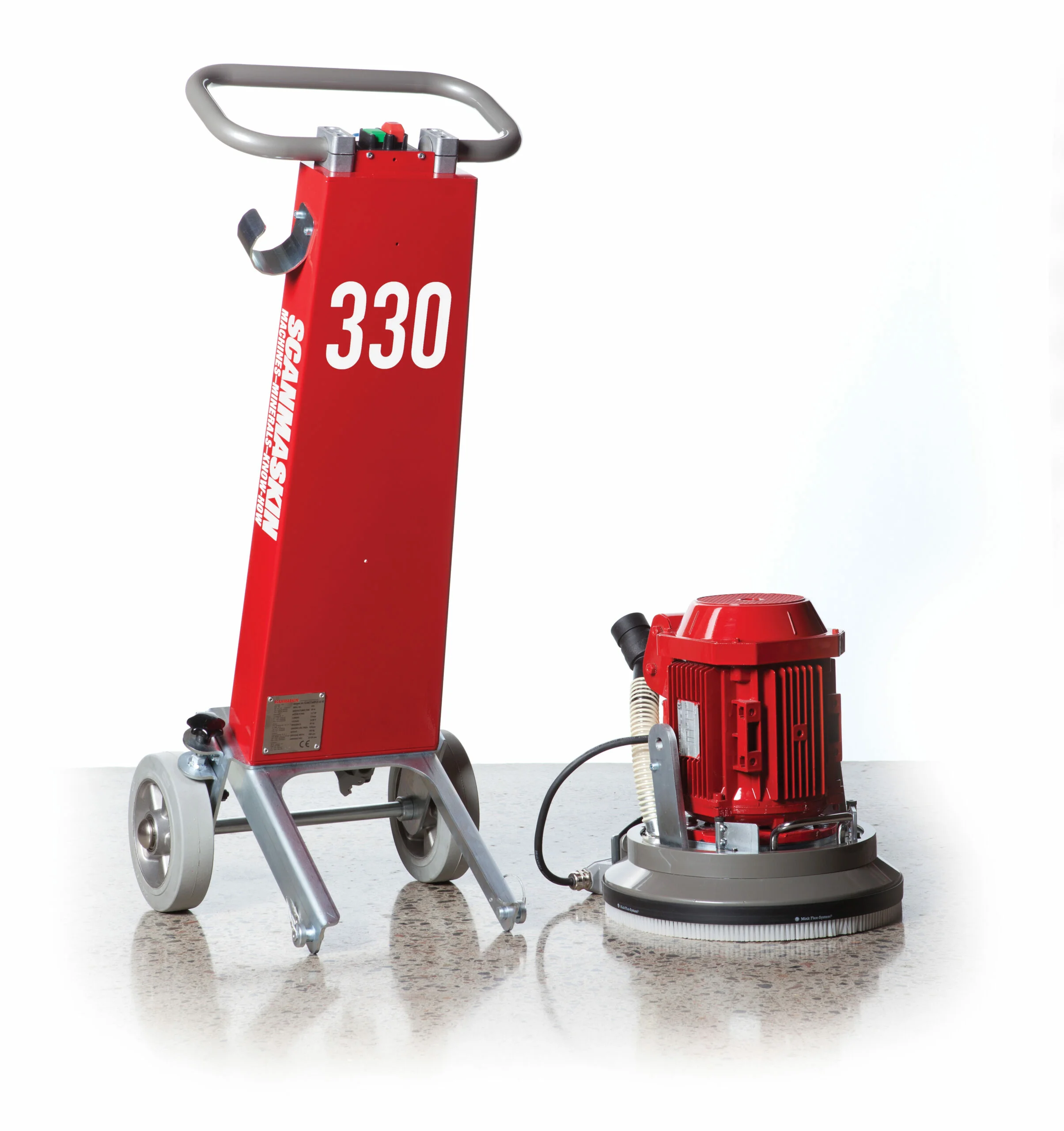

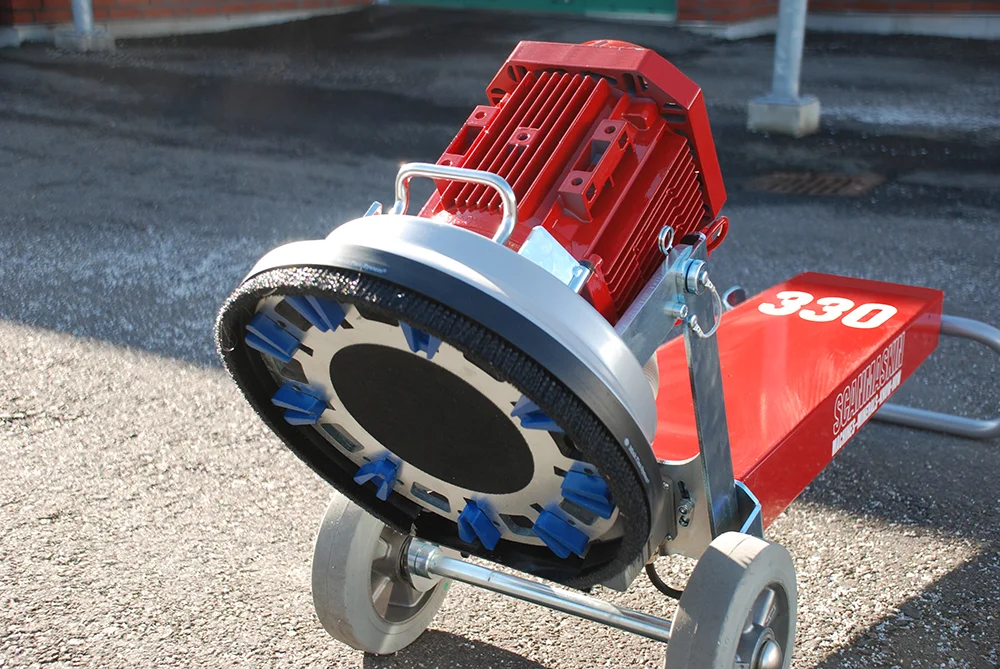

The 330 mm/13-inch disc on the Scanmaskin 330 RS can be configured with 3, 6, or 9 of our metal, ceramic, or resin bond diamond tools. This allows the floor grinding machine to cut more aggressively when necessary or grind softer surfaces by spreading out the weight and using more tools. For smooth and simple transport, the Scanmaskin 330 RS can easily be separated into two parts, each weighing well under 100 lbs.

Product description

  • A powerful and easy-to-use floor grinding machine.
  • Equipped with adjustable speed.
  • The single grinding disc is 330 mm/13-inch.
  • A simple and quick adjustment makes it from a small grinder into an edger.
  • For smooth and simple transport, you can easily separate it into two parts.
  • Weight included 14,5 kg/31 lbs.



Manual & Files



COREP-CPG1300

For Pricing & Availability on this product, please contact us at (800) 927-2490

This product can only be shipped by LTL Freight Shipping Only. Does not qualify for free shipping. Please call for a shipping estimate. (800) 927-2490.

Additional information

Weight 154 lbs

Technical Specification

1-phase 3-phase
Voltage: 110-120 V 1~ or 220-240 V 1~ Voltage: 380-480 V 3~
Motor power: 1.1 kW / 1.4 hp or 2.2 kW / 3 hp Motor power: 4 kW / 5 hp
Current: 15 Amp or 10 Amp Current: 16 Amp
Frequency: 50-60 Hz Frequency: 50-60 Hz
Grinding speed: 150-400 rpm or 250-750 rpm Grinding speed: 250-1500 rpm
Grinding disc: 1 x 330 mm / 13” Grinding disc: 1 x 330 mm / 13”
Grinding width: 330 mm / 13” Grinding width: 330 mm / 13”
Weight: 70 kg / 154 lbs Weight: 70 kg / 154 lbs
Other: CE-marking Other: CE-marking
